The difference working table for cnc router machine!

Anyone who knows something about machines, they must know, no matter Linear ATC cnc machine, carousel atc cnc router, 4 axis swing head cnc router machine, common woodworking machine cnc router, small metal cnc router, or high end 5 axis mold making cnc router. They all has one kinds of working table. There is no which kind of countertop is better or which is worse, and it needs to be selected according to the needs of the work.

There are three types working table for the 3d woodworking cnc router: Vacuum table, T-slot table, vacuum table mixed T-slot table. Customer can choose the working table for their machine according to their production demand, reduce unnecessary waste.

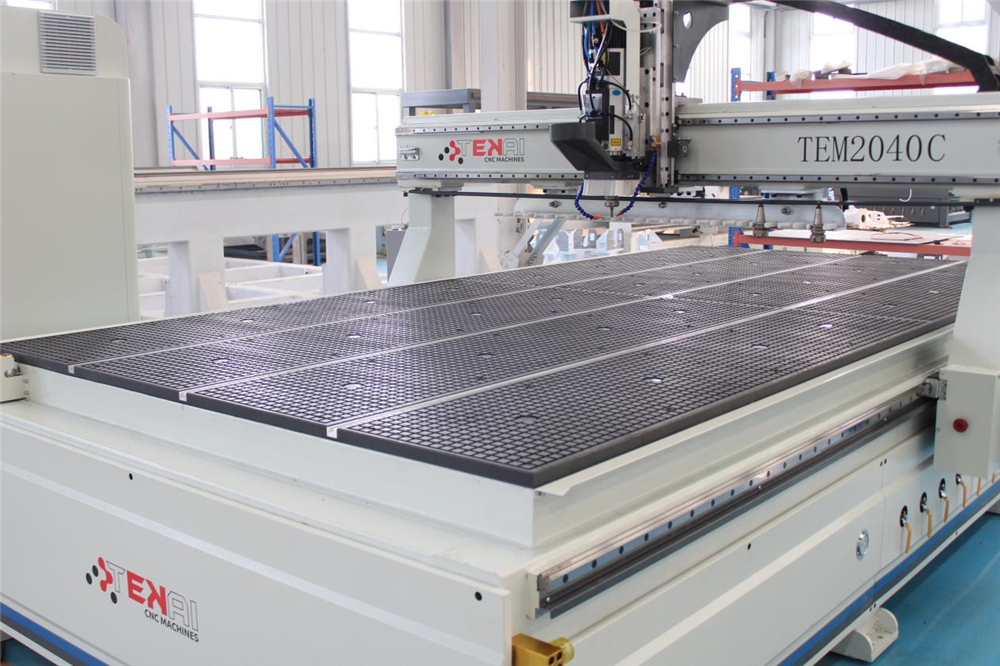

一、Vacuum table





Component: It is composed of vacuum table, vacuum area control valve and vacuum pump. There are several suction holes on the vacuum table, which are connected to the vacuum pump through pipes at the bottom of the table, which make the cnc router machines 3d have the function of vacuum adsorption.



The vacuum table is divided into multiple areas, generally divided into four, six or eight areas, each area has its corresponding switch valve, we can easily open and close the vacuum area through the controller. This can greatly enhance the adsorption function of the table top. The larger of the making machine cnc router size, the more areas.





Methods of using：Via a vacuum pump, put the material on the table, open the valve, and then the table can be firmly adsorbed. When we process the sheet, open the vacuum valve, and the sheet will be fixed directly, which saves a lot of time and is more efficient than manual fixing.



Applicable work: panel furniture custom processing, wooden door processing, large plate relief carving, prfessional for different materials plate cutting.



The vacuum suction table of the jinan router cnc 1325 will be shipped after it is milled in the factory, and the level error of the table will not exceed ±0.05mm.

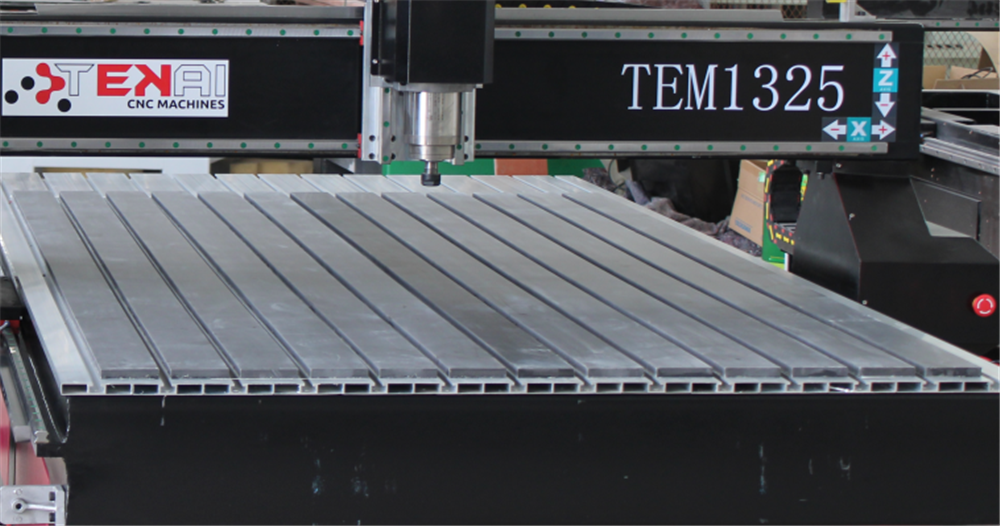

二、T-slot table



Components: It is composed of aluminum profiles, PVC sheets, and fixed tools.

Methods of using：Via the fixing tools, place the material on the table, and the fixing fixture is used to fix the edge of the material through the T-slot of the aluminum profile.

Applicable work：Mainly used in hollow processing, small handicrafts and processing of metal materials.

In order to protect the integrity of the PVC on the aluminum profile and prevent the high temperature deformation of the table during transportation, usually it is not milled and flattened before delivery, and the bottom milling cutter is sent to the customer so that the customer can mill it after receiving the goods, unless the customer specifically requests, the factory Will mill flat PVC.



三、Vacuum table mixed T-slot table



Components：It is composed of vacuum table, vacuum area control valve, vacuum pump, T-slot and fixed fixture. It combines parts of vacuum adsorption table and aluminum profile, and has all the components of vacuum table and part of aluminum profile.

Methods of using：When using a large plate, use it with a vacuum pump, put the material on the table, open the valve, and then the table can be firmly adsorbed. When using small materials, use it with a vacuum pump, put the material on the table, open the valve, and then use a fixture to firmly adsorb the table.

Applicable work：Mainly used in panel furniture custom processing, wooden door processing, large plate relief carving, hollow processing, different materials plate cutting, small handicrafts and processing of metal materials (small plates must be slightly less than the distance between two T-slots).

The vacuum table mixed T-slot table will not be shipped until they are milled in the factory, and the level error of the countertops will not exceed ±0.05mm.



Note: However, no matter what kind of table is used, before processing, it is necessary to lay a MDF on the table to prevent the tool from damaging the table and causing unnecessary losses when the cnc router machines 2030 is processing.
