The necessity of installing a positioning cylinder for the wood working ATC cnc router machine!

For ordinary cnc router auto tool changer, although the effect of precise positioning and cylinder is not as obvious as that of spindle, drive motor, control system and vacuum adsorption platform, it is still very effective for custom furniture processing.



一、Positioning Cylinder Installation

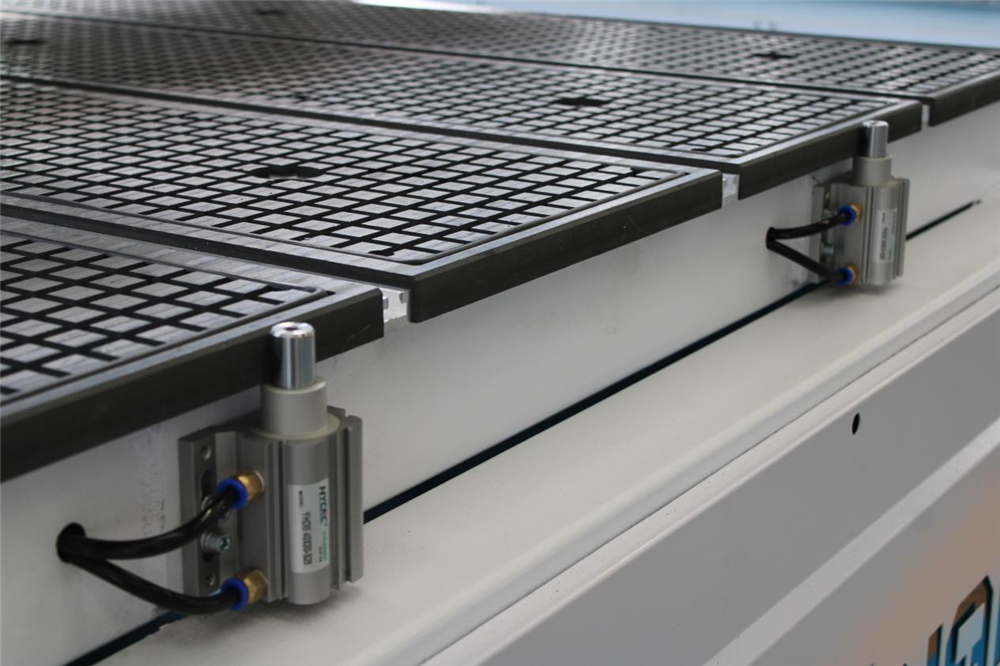

Generally, each linear atc wood cnc routers has 5 cylinder positioning, located in the Y-axis and X-axis directions of the fuselage, 3 in the Y-axis direction and 2 in the X-axis direction (the number of positioning cylinders can be customized according to customer requirements). The installation requirements of the positioning cylinder are relatively strict. The installation of the cylinder seat is made of cast iron or other materials with strong anti-vibration and shock-absorbing capacity, and the plate will not be deformed when the plate is continuously positioned and collided. In addition, it is necessary to use a dial indicator to adjust the positioning during installation to ensure that the vertical direction is at a 90-degree angle with the table, and the L-shaped direction of the positioning axis is also at a 90-degree angle.



二、The function of cylinder positioning



Provide precise positioning function for the sheet to be produced and processed. Before the atc wood carving cnc router start to work, it is necessary to precisely locate the starting point of the workpiece to be produced and processed. If the machine is not equipped with cylinder positioning, in order to ensure the accuracy of production and processing, we must carry out precise positioning adjustment steps for each sheet.



三、Advantages of Positioning Cylinders



Reduce repetitive positioning time, reduce manual positioning time for plates, and improve work efficiency. When the machine repeatedly processes the same sheet for mass production. After installing the cylinder positioning, it can be ensured that each sheet is placed in the same position on the vacuum table of the machine, and there is no need to repeatedly measure the starting point of the machine work.



In addition, when the customer needs to do panel furniture processing, the Three-In-One holes of some panels need to be punched on both sides of the front and back of the panel. The accuracy of positioning and punching after the flip.



四、Safety performance of positioning cylinder



The cylinder positioning of the panel furniture production line is controlled by the program of the control system. With out-of-bounds protection device, when the positioning shaft of the cylinder is extended, the machine automatically stops working to prevent the spindle tool from touching the cylinder or the cylinder shaft to damage the tool, and avoid unnecessary losses within a limited range.



Therefore, for the panel furniture production line, the cylinder positioning is an indispensable device for both manufacturing and safety, which not only improves the production capacity, but also improves the safety performance during the operation of the machine.
