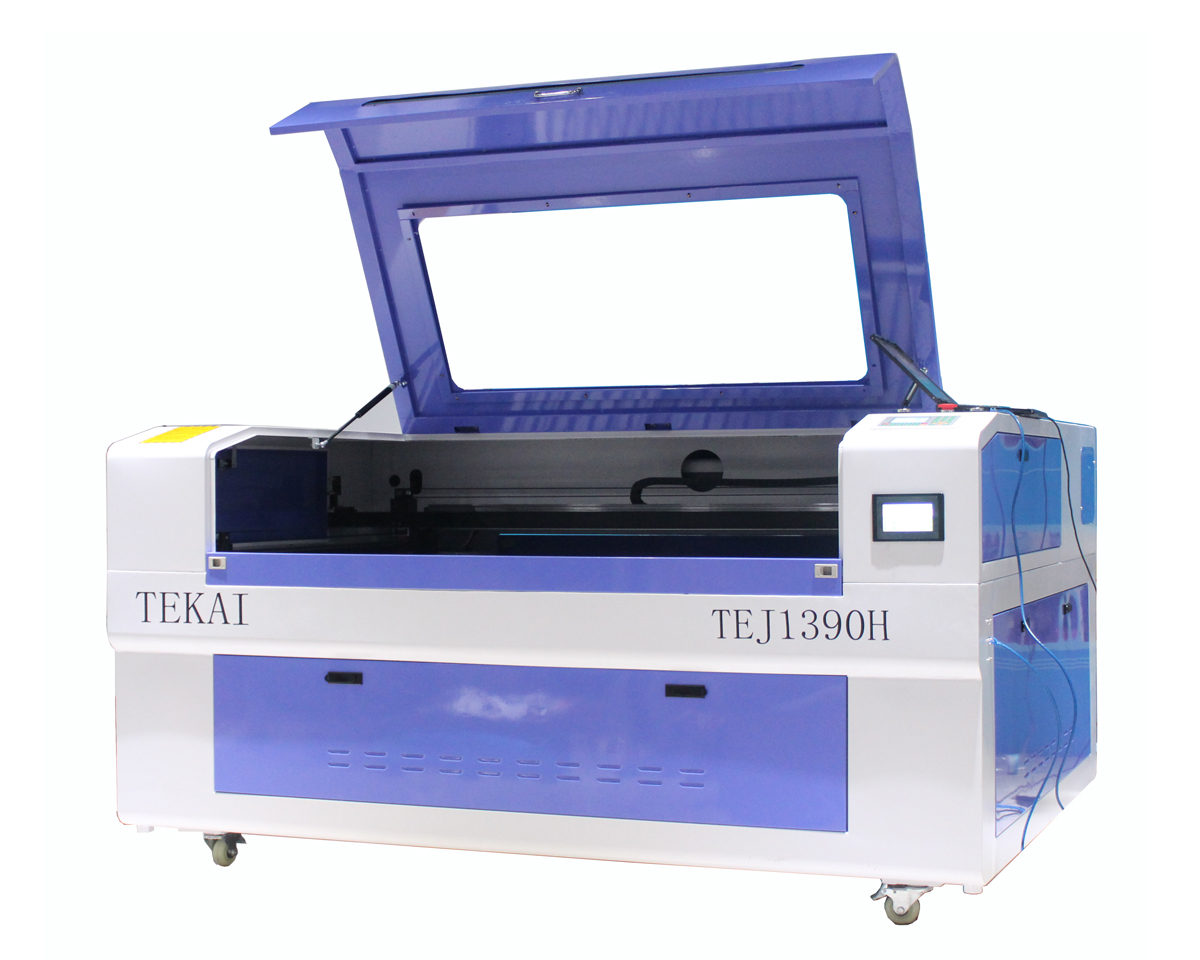

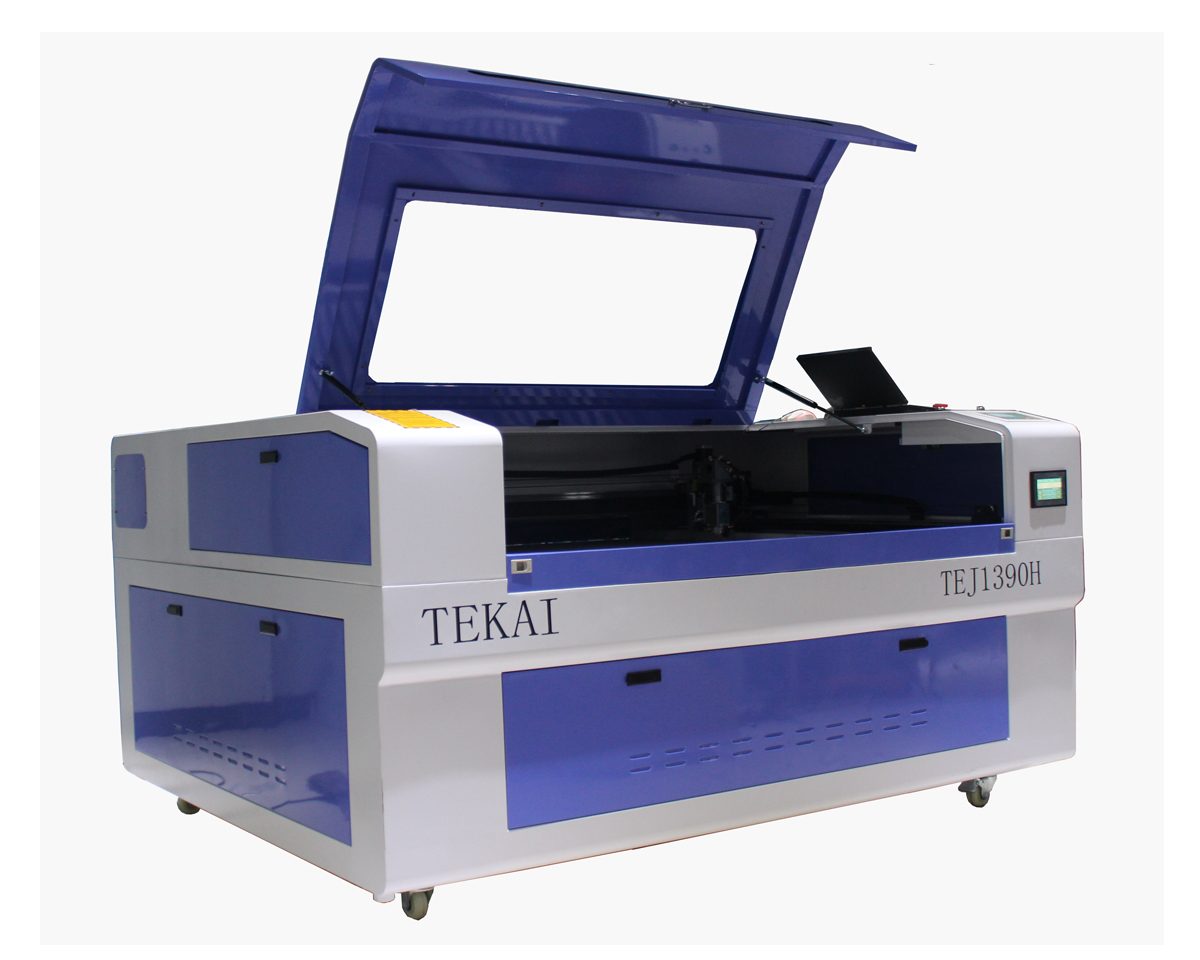

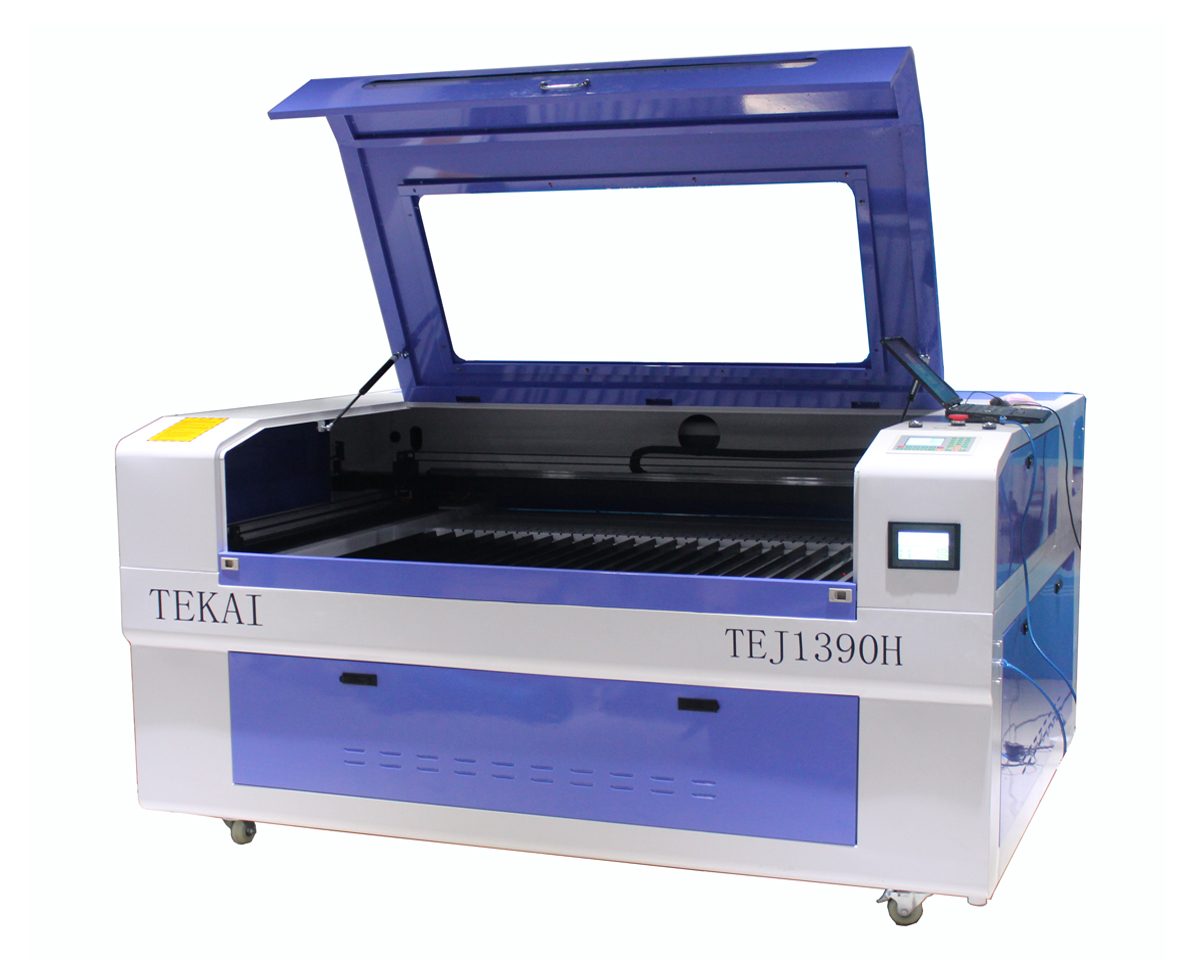

Model: TEJ1390H
Working area: 1300*900mm
Power tube: Reci 150w, 180w/ Yongli 280w, 300w/ SSL 600w
Head: Laser head professional for metal cutting with auto up and down system
Control system: Ruida control system with metal cutting software
Transmission: Shanghai Fulong Belt
Guide rails: Taiwan Hiwin 20mm square rails
Table model: Blade table or Honeycomb table
Motor:450B stepper motor
Driver:Leadshine M860 driver
Cooling: CW5200 water chiller
Product DetailConfigurationApplicationHS CodeProduct Tags

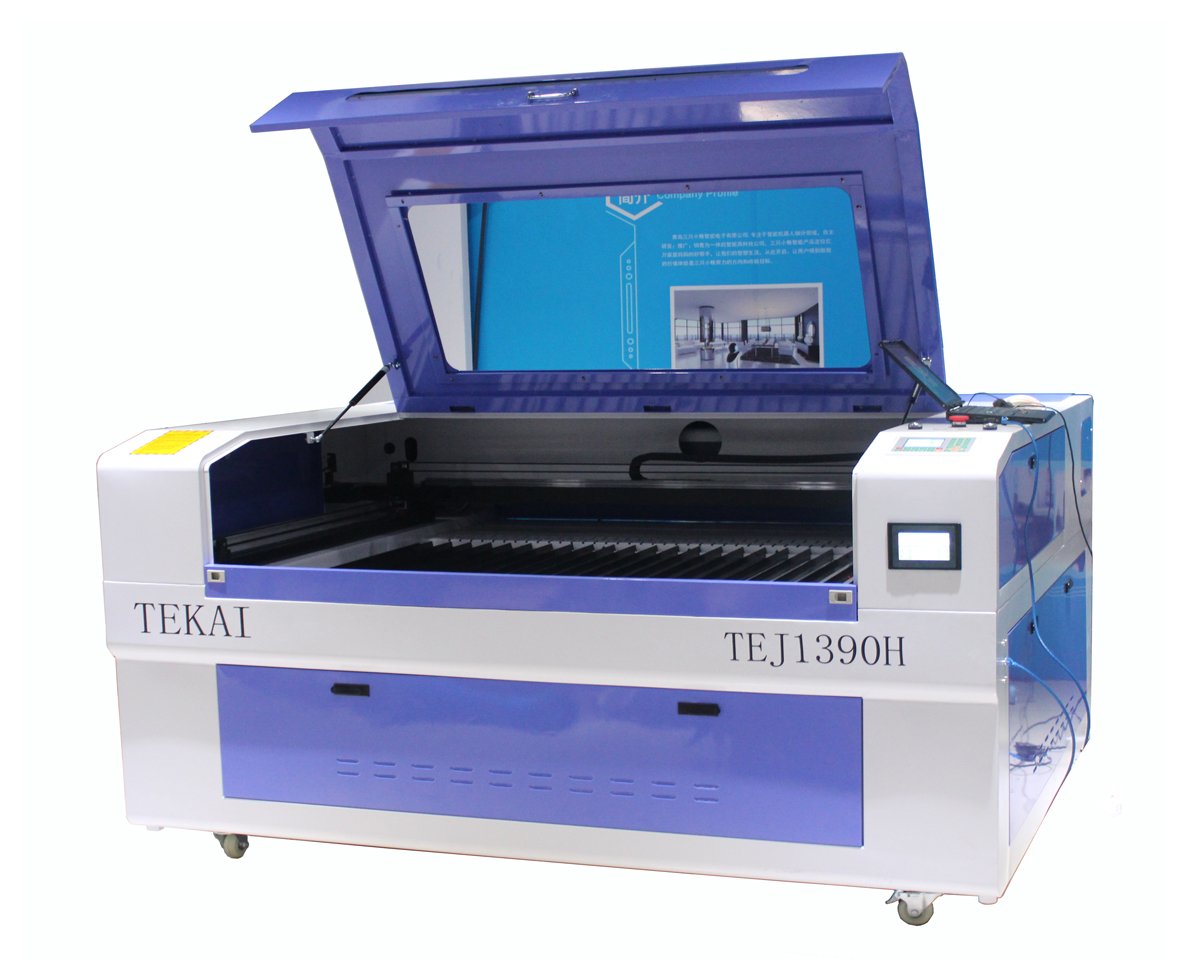

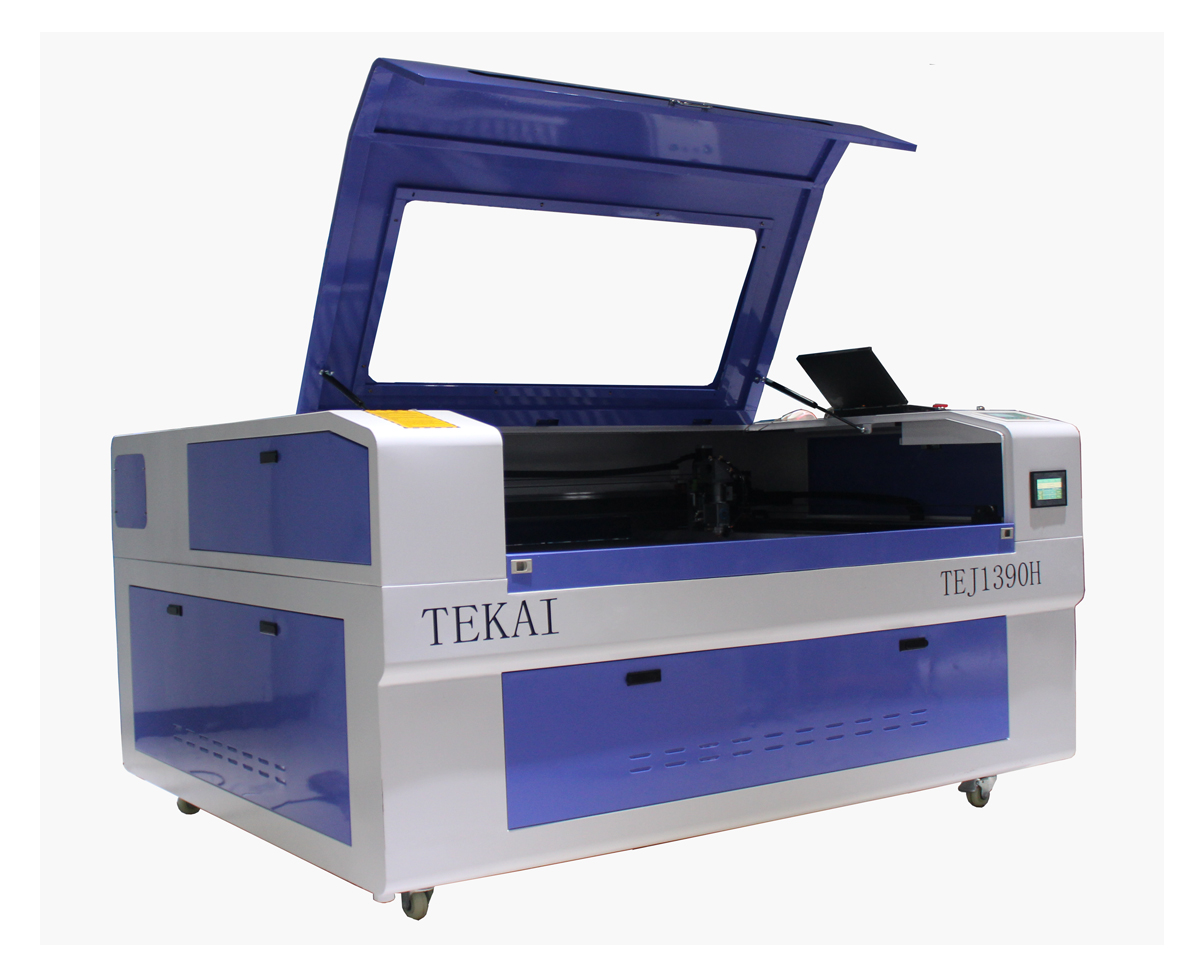

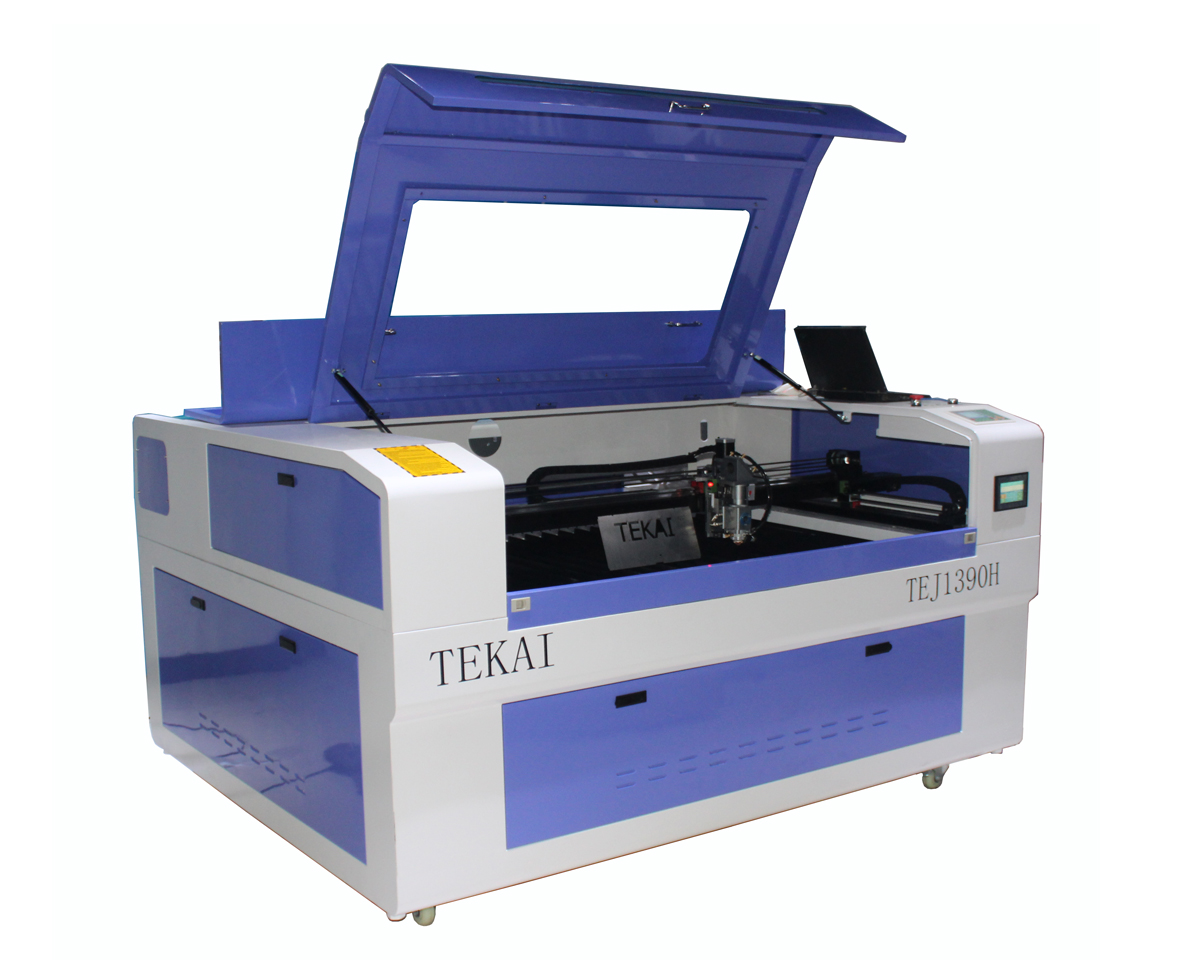

No matter big company or small company. Only they need machine to cutting and engraving materials. The cnc and laser complement each other with their different cutting characteristics, and are selected by customers at the same time. Especial for the advertising company, TEJ1390H, it is one special laser machine. Most laser machine only can cut non metal materials. TEJ1390H laser mixed cutting machine, it can cut thin metal and non metal Materials with affortable price. Especial for advertising signs making. Somtimes, customer need to cut metal. But, very thin. Most time cutting non metal like acrylic, wood, MDF etc. CO2 laser mxied cutting machine is the best choice. Reasonsible price, It not only meets the needs of metal cutting, but also meets the needs of non-metal cutting.
1) More powerful cutting ability: metal steel such as stainless steel,carbon steel,and nonmetal such as acrylic,wood,etc.
2). High precision: X/Y axis adopt Leadshine servo motor with high precision belt transmission,improve the response speed and cutting precision,extend service life.
3). Good stability: optimized the nc system control,it can meet the precision parts processing,stable dynamic performance,also can work for long hours.
4). The cutting section with good quality: mechanical follow-up cutting head system,cutting head always follows the material to keep the cutting point locaation unchanged,which insures smooth cutting section without processing again.It can adopt to flat or curved surface sheet cutting.
5). Adopt sealed co2 laser tube,main consumable items are electric energy,water cooling,auxiliary gas and laser light.
6). Simple structure,easy operation,stable laser device and low maintenance cost.

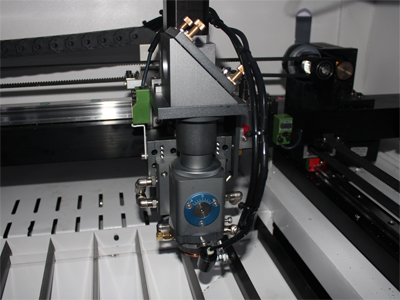

Professional laser metal cutting head with up-down system, it can adjust the focus autiomatic with the different thickness of the metal.

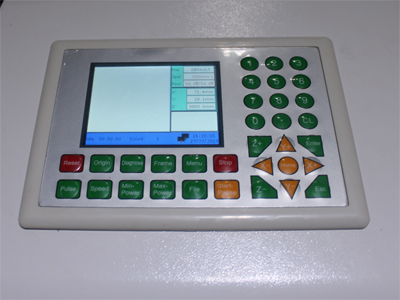

Ruida control system, USB off line working. Simple and stable operation，Powerful data analysis capabilities.

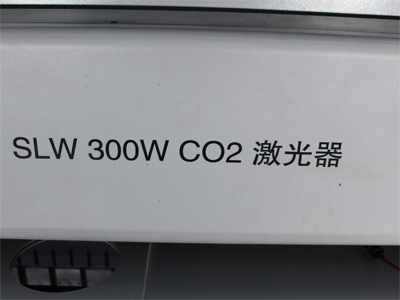

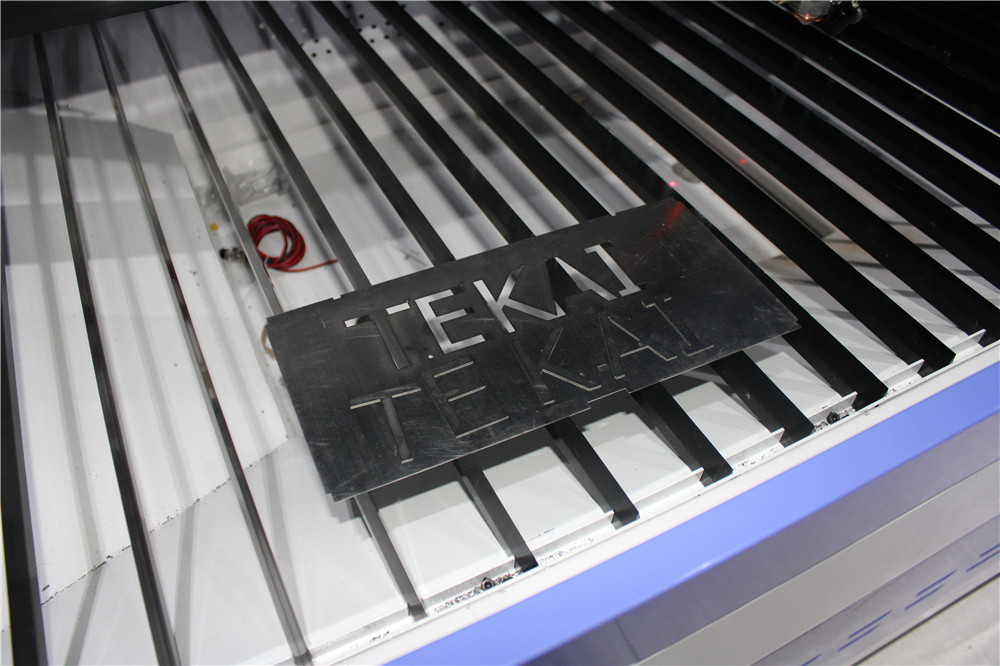

SLW 300W laser tube, big power, it can cut 3mm carbon steel, 2mm stainless steel. Reci and Yongli as option laser tube.

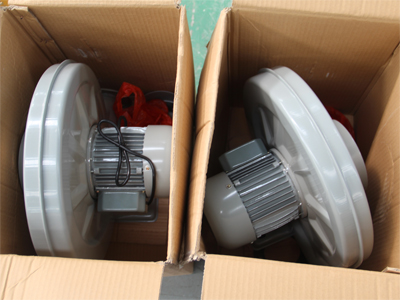

Exhaust fan, Remove the fumes from the production process. Keep the air clean.

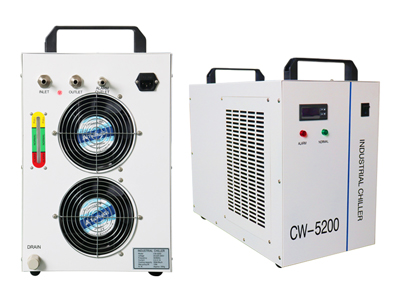

Water chiller cw5200 cooling system, Circulating cooling water in the chiller. Extend the life and continuous working time of the laser tube.

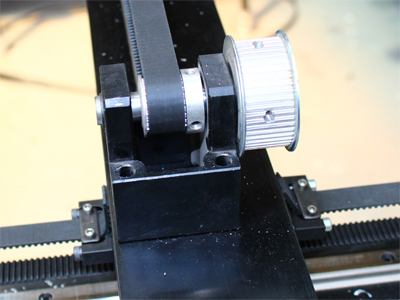

coupler connect with gear, Fulong belt

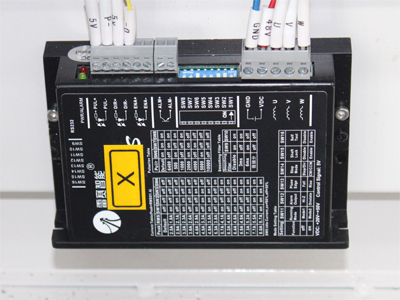

Leadshine M860 driver, fasmous brand, keep the machine moving fast and smooth.

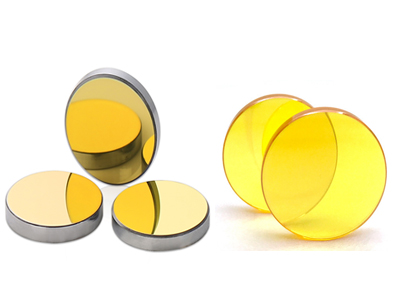

Singapore Lens and mirrors, Efficient conduction, focused light source，low loss
Option parts:
1) CCD camara 2) Up and down table
# work area is 1300 * 900 mm
# 150w, 180w, 280w, 300w, 600w
# Ruida control system with Metal cutting software
# Laser head professional for metal cutting with auto up and down system
# Stepper motor and Leadshine driver
# Taiwan HIWIN square rails
# Shanghai Fulong Belt
# Singapore Lens and mirrors
# Table of blades
# Red light pointer
# Air pump
# Water cooler CW5200
# Exhaust fan
# Standard tool box
Option parts:
1) Up and down table
2) Rotary as 3d engraving
3) CCD camera for edge cutting
|
NO. |
Model | TEJ1390H |
|
1 |
Laser medium | CO2 |
|
2 |
Working area | 1300*900mm |
|
3 |
Working table | Knife blade table |
|
4 |
Laser power | 150W~600W |
|
5 |
Power Supply | 220V/50Hz; 110V/60Hz (optional) |
|
6 |
Min line width | ≤0.15mm |
|
7 |
Positon accuracy | 0.01mm |
|
8 |
Repetition accuracy | 0.02mm |
|
9 |
Cutting speed | 150mm/s |
|
10 |
Guide rail | Hiwin from Taiwan |
|
11 |
Transmission method | Belt Transmission |
|
12 |
Drive system | Leadshine driver and stepper motor |
|
13 |
Cooling system | Water-cooling |
|
14 |
Control system | Ruida control system |
|
15 |
Compatible software | Coreldraw, Photoshop, AutoCAD, Tajima |
|
16 |
Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
|
17 |
Working environment | 0-45℃, |
|
18 |
Operating Humidity | 5-95% |
|
19 |
Net weight | 550kg |
|
20 |
Gross weight | 650kg |
Materials:

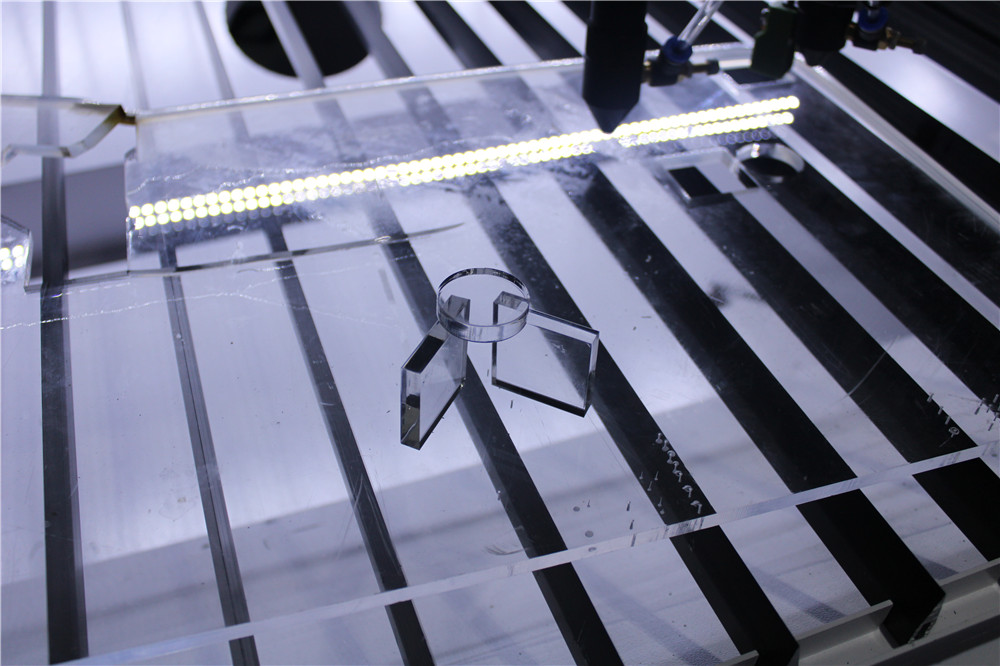

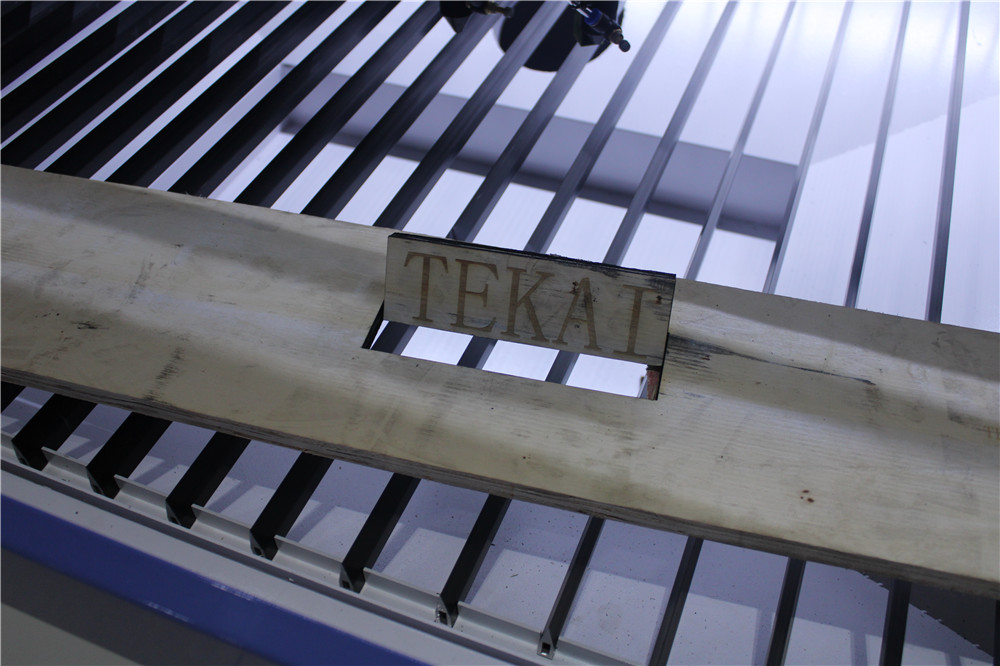

Glass, organic glass, leather, cloth, acrylic, wood, MDF, PVC, plywood, maple leaf, double-color sheet, bamboo, plexiglas, paper, leather, marble, ceramics etc nonmetal materials, as well as carbon steel, stainless steel.
Industries:
Advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry.
CNC HS code: 8465990000
Laser HS code: 8456110090
Oscillating knife cutting machine：8453800000
