Model:TEM1325
Working area:1300*2500*200mm
Spindle:3.0kw water cooling spindle
X Y axis transmission:Gear transmission
Z axis transmission:Taiwan TBI ball screw
Guide rails:Taiwan Hiwin 20mm square rails
Control system:Mach3 controller
Motor:450B stepper motor
Driver:Leadshine M860 driver
Inverter:Fuling inverter
Max motion speed:30000mm/min
Max working speed:25000mm/min
Product DetailConfigurationApplicationHS CodeProduct Tags

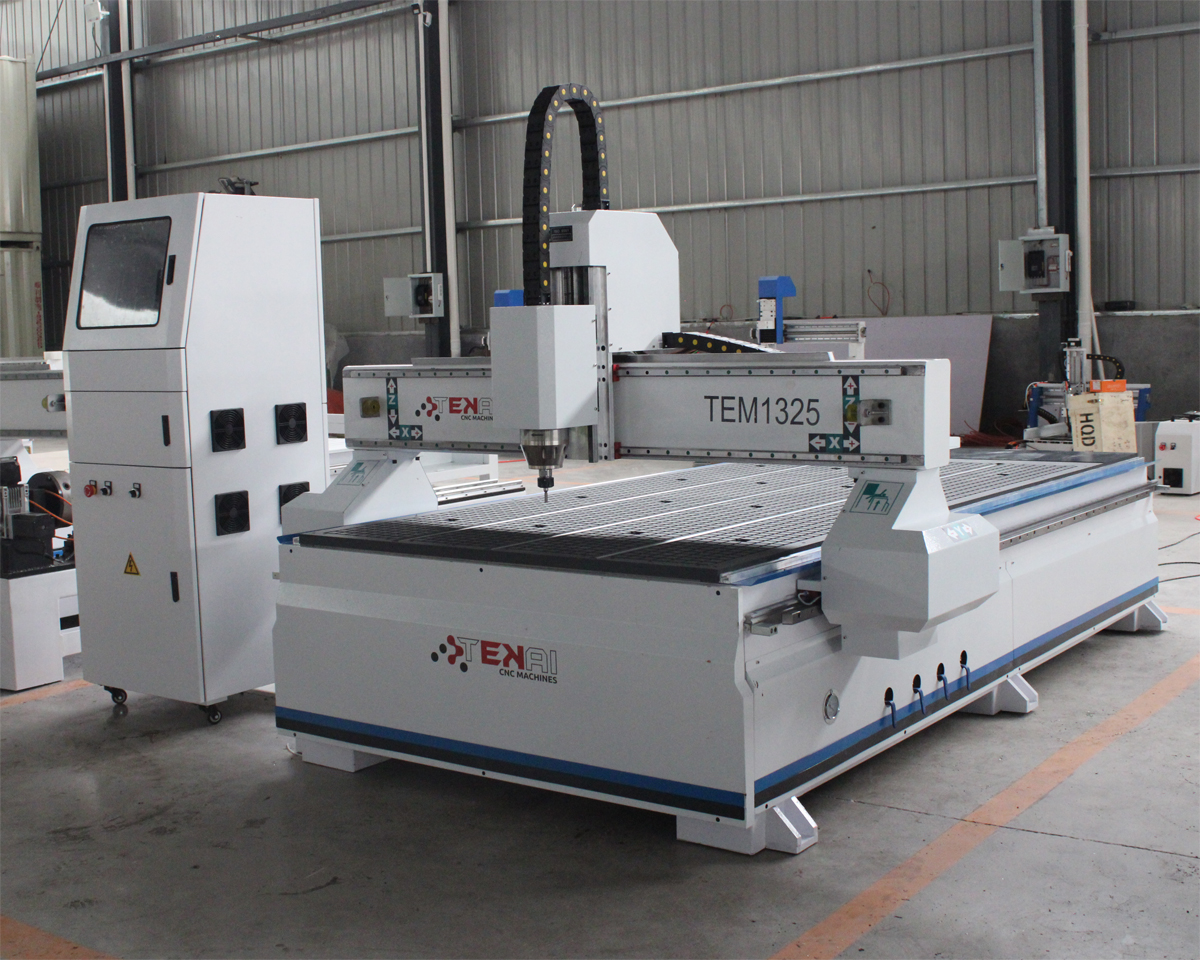

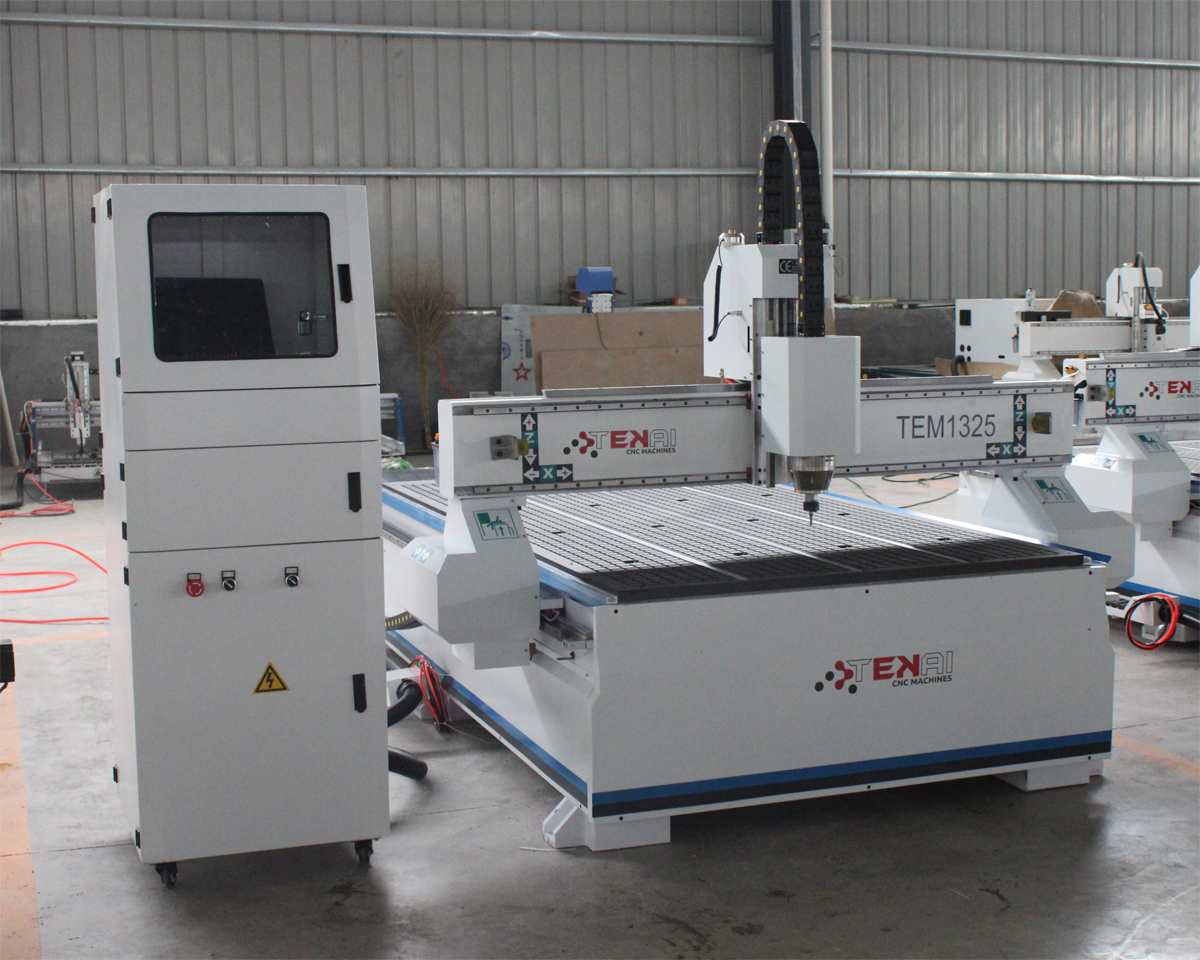

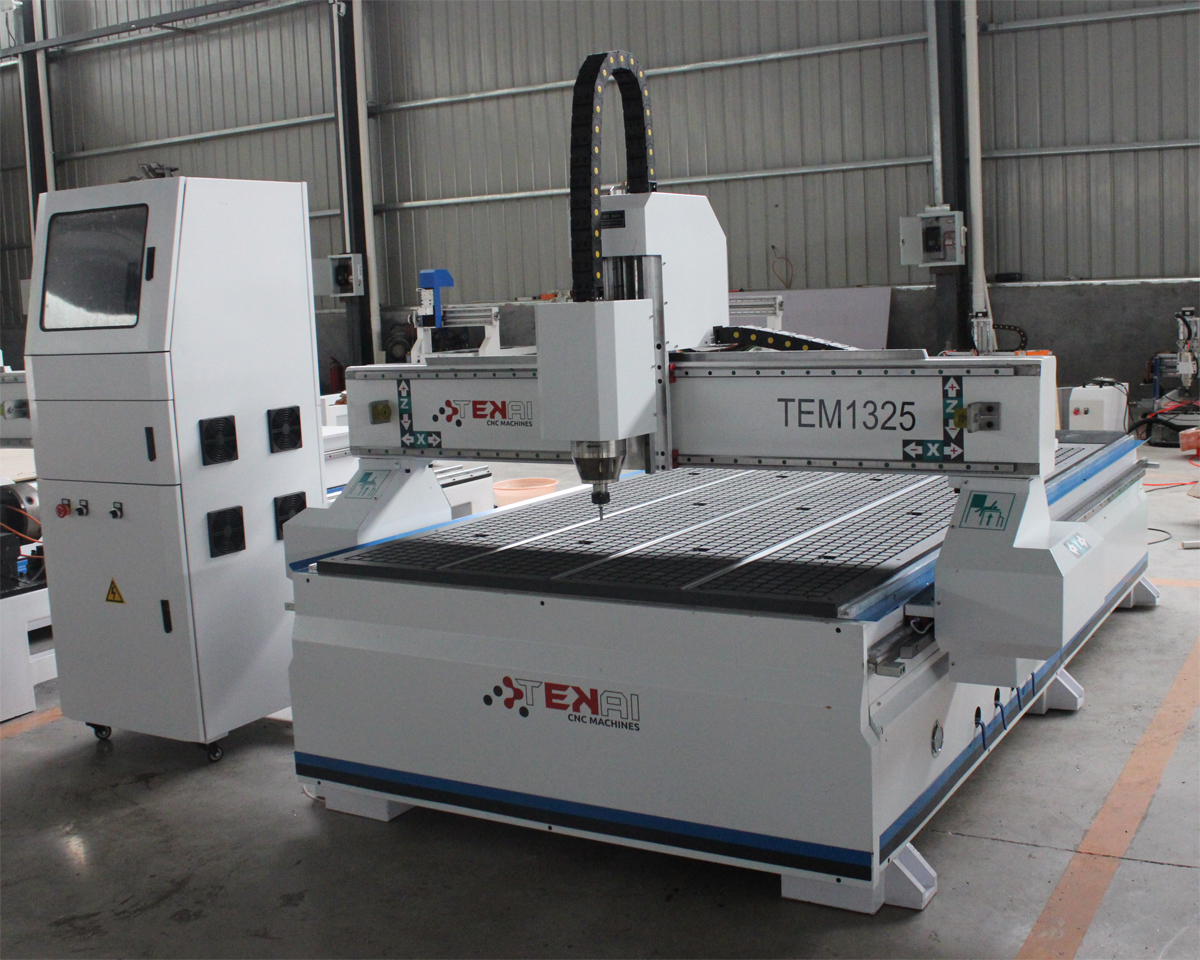

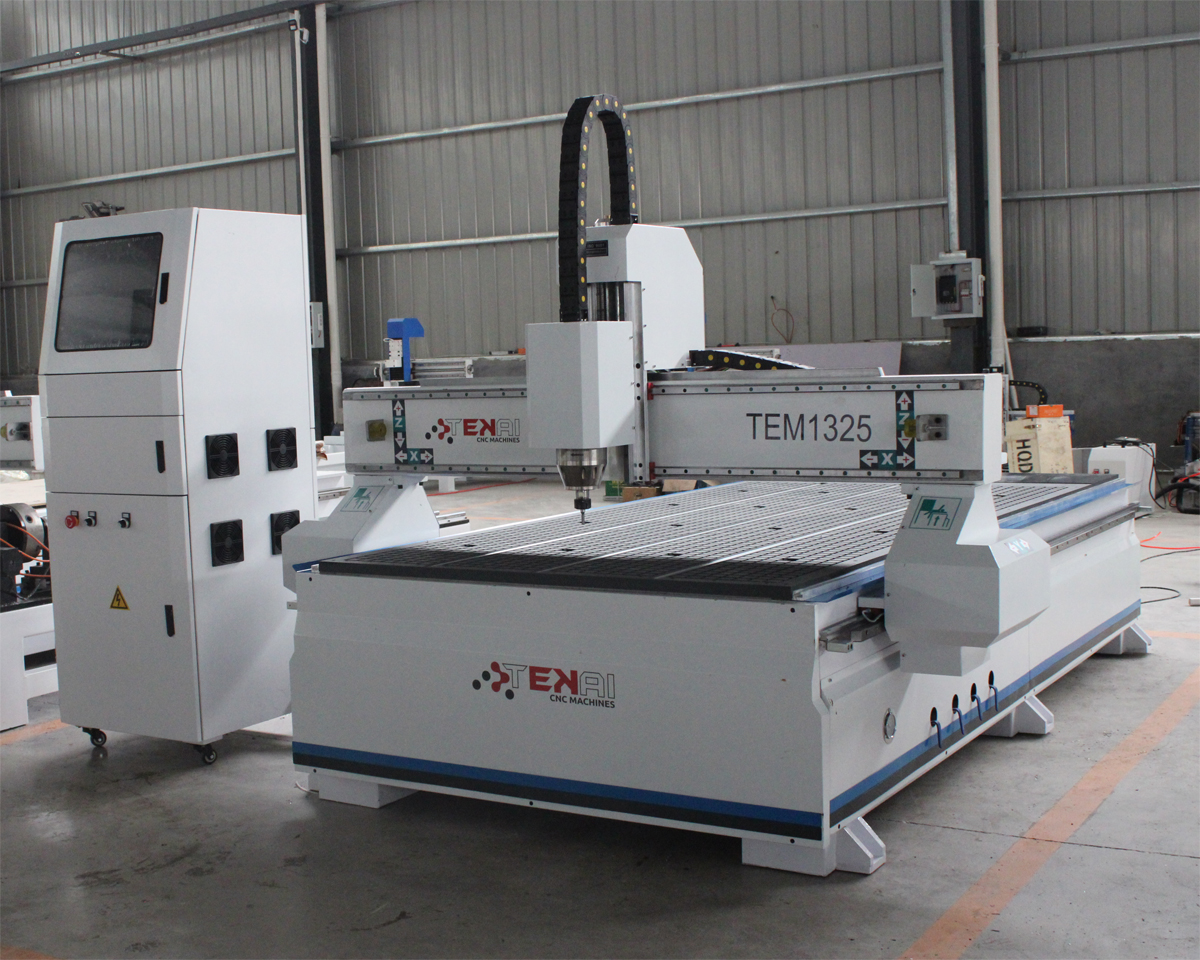

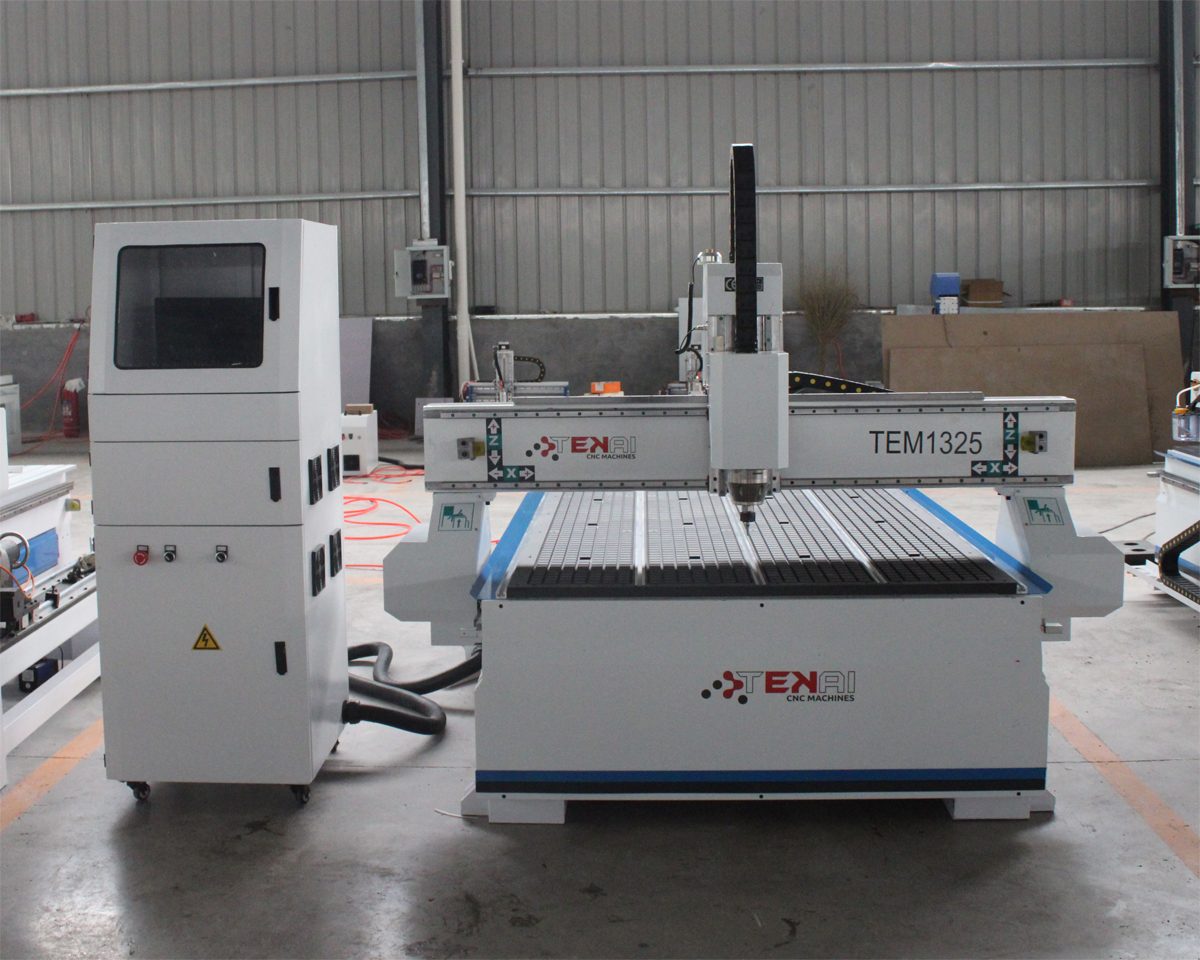

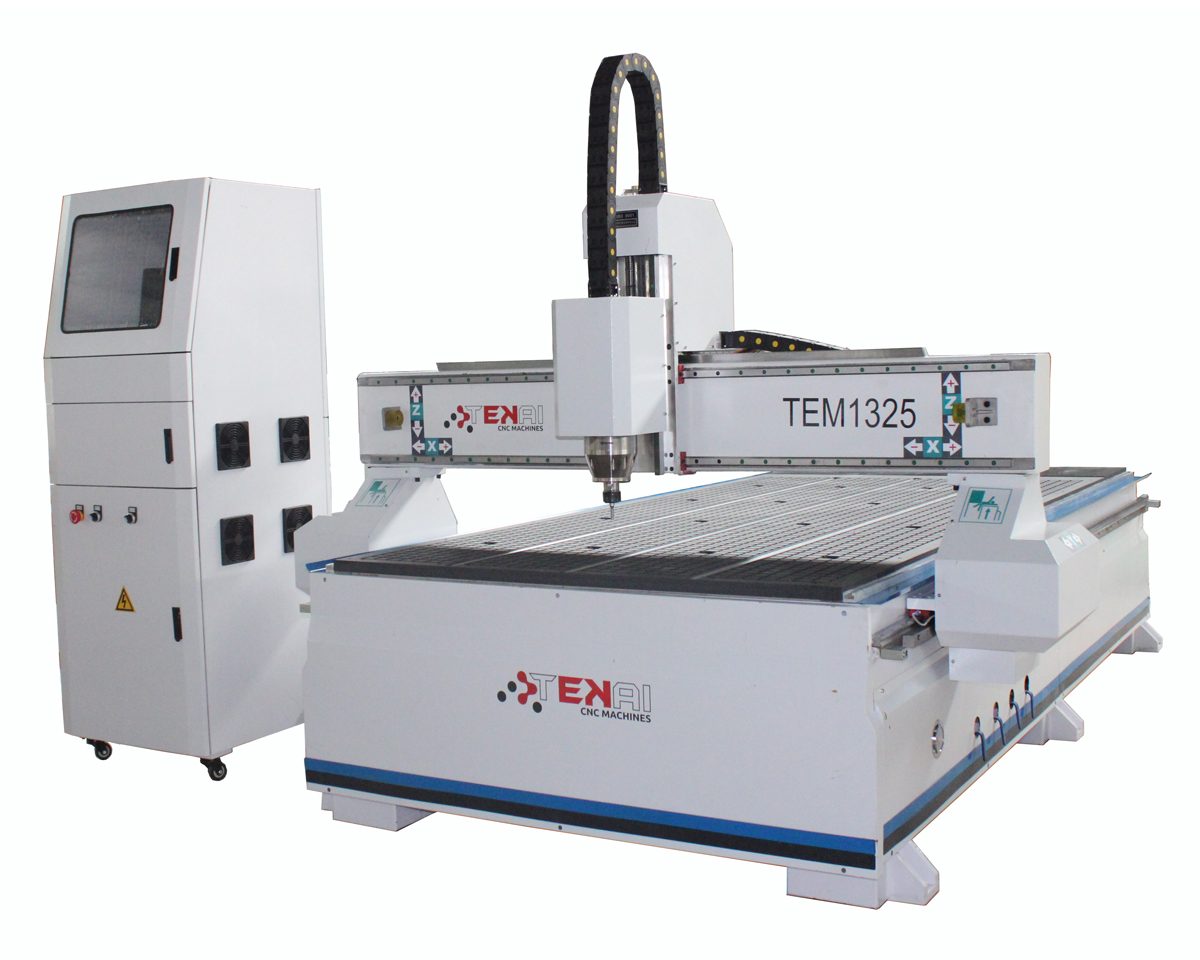

TEM1325 woodworking cnc router engraving machine is the most used model in CNC woodworking engraving machine. The maximum processing size of this model woodworking engraving machine is generally 2500mm in length, 1300mm in width, and 200mm in processing height, it also can be customized according to your materials. Because this size is just suitable for the processing size of the wooden door, and it is easy to use and fast in processing. Therefore, the 1325 woodworking engraving machine is very popular among customers.
TEM1325 woodworking cnc router engraving machine adopts high temperature tempering treatment, welded steel tube T type machine, high rigidity, bearing strength better. Ensure the stability of the machine during processing.
TEM1325 woodworking cnc router engraving machine adopts Changsheng 3.0kw water cooling spindle, which is famous in China. It not easy to break cutters, high power, able to handle thicker non-metallic materials and soft metal materials.
X and Y axis are transmitted by helical rack and pinion. It makes the machine work faster and has larger cutting force compared with ball screw transmission. Z axis adopts Taiwan TBI ball screw transmission, high precision.
TEM1325 woodworking cnc router engraving machine adopts 450B stepper motor, more power than advertising machine. Y axis adopts double motor drive, powerful and smooth operation, which ensure the accuracy of the machine.
TEM1325 woodworking cnc router engraving machine mainly used for cutting and engraving wooden doors, furniture, MDF, acrylic, plastic, composite material, etc. Also can process soft metal materials such as aluminium plate, copper plate.
Mach3 control system with USB port to link. DSP, Nc studio etc as option parts. Very popular system in the market. Easy put new function on the software.
3.0kw water cooling spindle, more powerful, low noise, suitable for engraving and cutting work.
Auto oil lubrication, make the machine run more smoothly. Make the machine using life is longer.
High-quality drag chain, protect the built-in cable of the engraving machine, it has the characteristics of low noise, wear resistance and high-speed movement.
Vacuum table mixed T-slot table. Higher efficiency for fixed processing materials. The plate fixed by vacuum table, small piece, use T-slot. Very convient.
Helical straight rack and pinion, 1.5M. High precision measurement installation. Ensure the machine moving smooth. Increase the machine working speed.
Z axis Taiwan TBI Ball screw, moving more high precision. Keep Z axis working precision.
Tool sensor, help to find the zero point of the machine.
# Working area: 1300*2500*200 mm
# Heavy duty frame body
# T-slot table with pvc
# Mach3 control system via USB port link with your computer.
# 3.0kw water cooling spindle
# X Y axis rack and gear transmission
# Z axis Taiwan TBI ball screw transmission
# Taiwan HIWIN 20mm square rails
# Step motor and Leadshine M860 driver
# Japan Omron limited switch
# Fuling inverter
# auto oil lubrication
# Filter
# Tool sensor
# Standard tool box
# Tools for cutting and milling, foot panel etc.
| Model | TEM1325 |
| Working area | 1300*2500*200mm |
| Spindle | 3.0kw water cooling spindle |
| X Y axis transmission | Gear transmission |
| Z axis transmission | Taiwan TBI ball screw |
| Guide rails | Taiwan Hiwin 20mm square rails |
| Control system | Mach3 controller |
| Motor | 450B stepper motor |
| Driver | Leadshine M860 driver |
| Inverter | Fuling inverter |
| Max motion speed | 30000mm/min |
| Max working speed | 25000mm/min |
| Lubrication system | Auto oil lubrication |
|
Optional parts |
5.5kw water cooling spindle |
| Rotary axis | |
| Leadshine Hybrid motor HBS758 | |
| Vacuum table with 5.5kw vacuum pump | |
| Dust collector |
1. Wood Furniture Industry: wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cup board doors, interior doors, sofa legs, headboards, game cabinets, computer tables, sewing machines table, instruments etc.
2. Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts.
4. Architectural Models: engraving fine window, fencing and wall patterns, etc.
CNC HS code: 8465990000
Laser HS code: 8456110090
Oscillating knife cutting machine：8453800000
